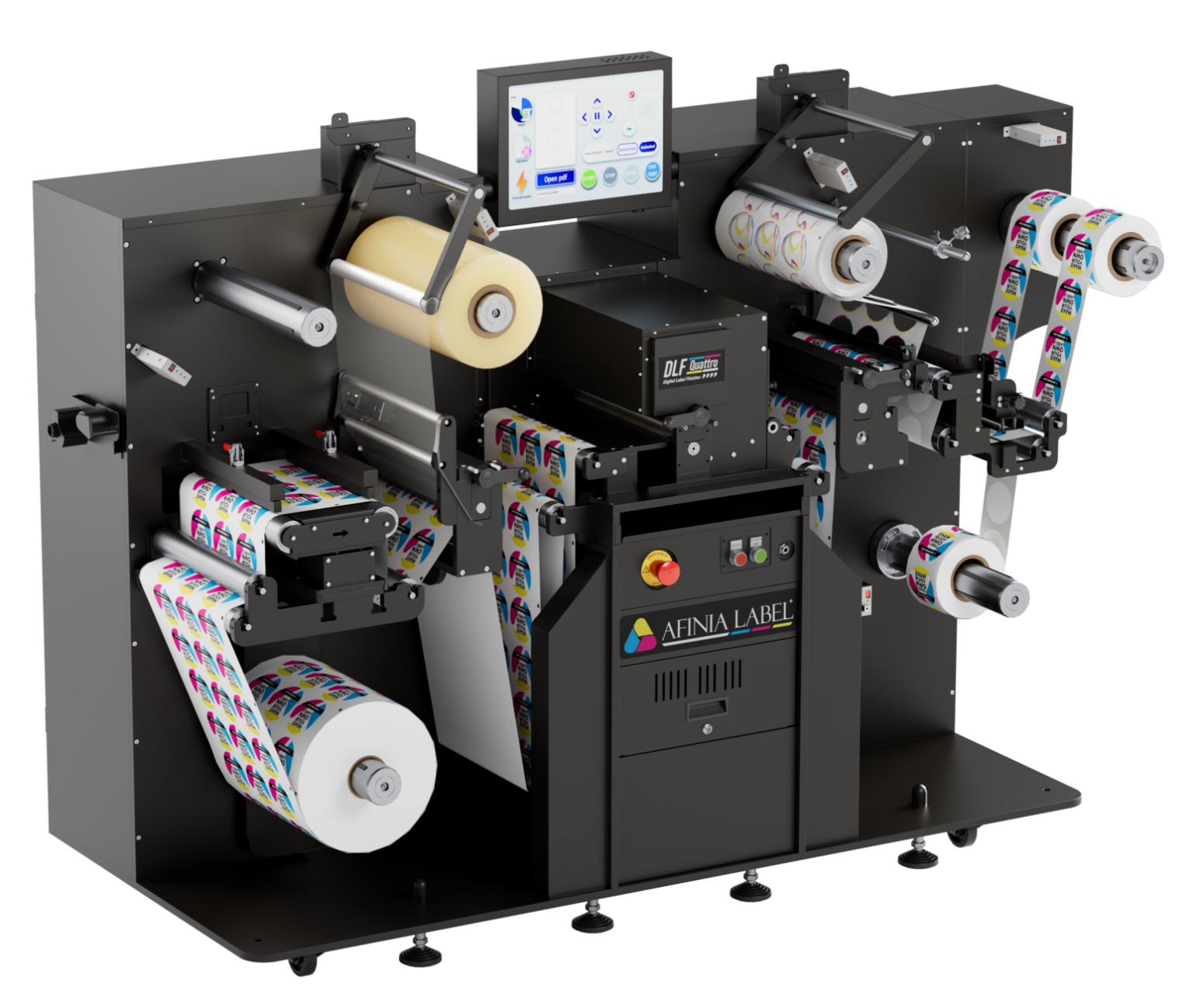

Afinia DLF Quattro 4x Plotter Digital Finisher
Call for Price
Description
Finish More Labels, Faster
The Afinia Label DLF Quattro is a high-speed digital finishing system built for short-to-medium label runs, frequent job changes, and custom shapes. Four drag-knife cutting heads work in tandem to increase finishing speed while eliminating the time and expense of traditional dies.
In one streamlined roll-to-roll workflow, the DLF Quattro can laminate, contour cut, remove waste, slit, and rewind finished label rolls.
- Finishing speeds up to 29 feet per minute*
- Four tandem cutting heads
- No traditional dies required
Flexible Digital Finishing Without Dies
Create custom label shapes directly from vector PDF cut files. With no physical dies to order, the DLF Quattro makes it easier to accommodate short runs, seasonal products, prototypes, and frequent design changes.
The integrated touchscreen Cutting Manager provides direct control over job setup, cut positioning, and production settings. Automatic cutting-head alignment and web guiding help simplify operation and keep material properly aligned throughout the finishing process.
Complete Roll-to-Roll Finishing
The DLF Quattro brings multiple finishing steps together in one efficient workflow:
- Optional lamination
- Digital contour cutting
- Waste-matrix removal
- Slitting
- Rewinding
- Optional split rewind
A Blank Label Mode can also cut blank labels on liner, preparing them for later printing.
Key Features
- Four drag-knife cutting heads working in tandem
- Finishing speeds up to 29 feet per minute*
- Digital cutting from vector PDF files
- Custom label shapes without traditional dies
- Maximum cutting width of 13 inches
- Automatic camera-based registration
- Automatic web guide
- Integrated touchscreen Cutting Manager
- Up to eight slitting blades
- Optional linered-laminate capability
- Optional split rewind
- Handles paper and common label films, including BOPP and PET
- Installation and operator training included
- See the DLF Quattro in Action
DLF Quattro Specifications
Maximum Web Width: 13.78 in. / 350 mm
Maximum Cutting Width: 13 in. / 330 mm
Maximum Label Length: 19.68 in. / 500 mm
Maximum Cutting Speed: Up to 9 m/min.*
Cutting Technology: Four drag-knife plotter heads
Input Roll Diameter: Up to 19.68 in. / 500 mm
Finished Roll Diameter: Up to 11.81 in. / 300 mm
Minimum Slitting Width: 0.75 in. / 19 mm
Slitting Blades: Up to eight
Registration: Camera-based black-mark detection
Media: Paper, BOPP, PET, and similar label materials
Core Size: 3 in. / 76 mm
Power Requirements: 100–240V, 50/60Hz, 1kW
Air Compressor: Required
*Maximum finishing speed is shape dependent. Complex shapes, tight turns, and detailed cut paths may reduce production speed.
Is the DLF Quattro Right for Your Operation?
The DLF Quattro is designed for label producers that need faster turnaround, frequent job changes, flexible label shapes, and efficient short-to-medium-run production without dies.
Contact Offtech to discuss your application, label size, materials, and production requirements.
